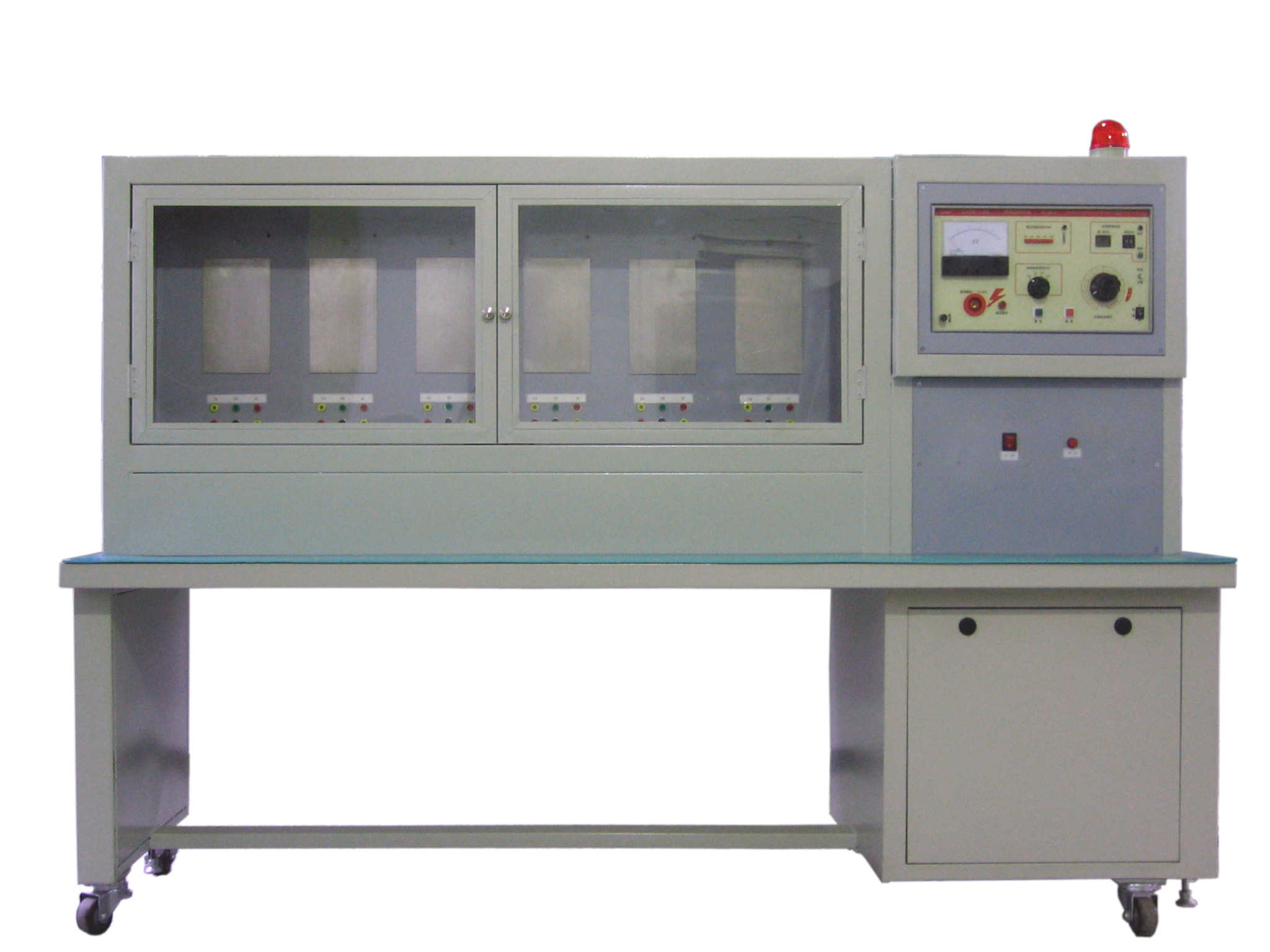

Single Phase and Three Phase High Voltage Test Bench Type KP-V3000-A
Single Phase and Three Phase High Voltage Test Bench Type KP-V3000-A
Intro
I. Brief Introduction
Electricity meter high voltage test bench KP-V3000-A is a new generation of high voltage testing equipment based on the latest international standards, which adopt special current transformer and high voltage relay to ensure high accuracy and safety.
II. Main feature
The equipment consists two parts: High voltage generator and controlling circuit. High voltage output is controlled by remote controller and a security door is adopted, so that operators do not need to touch the equipment at all to ensure absolutely safety.
This equipment is suitable high voltage tests for single phase and three phase meter.
III. Main Specification
1. Voltage output
Single phase: 4000V, 2000V
Three phase: 4000V, 2000V, 2000V (U/I), 600V
2. Leakage current: 5mA
3. Testing time: 1-99s (settable)
4. Tested meters: Single phase 6PCS
Three phase 6PCS.
5. Power supply: Single phase 220V 50Hz, ground connection must be required.
6. Environment: 20± 5 degree, humidity ≤ 80%
I. Brief Introduction
Electricity meter high voltage test bench KP-V3000-A is a new generation of high voltage testing equipment based on the latest international standards, which adopt special current transformer and high voltage relay to ensure high accuracy and safety.
II. Main feature
The equipment consists two parts: High voltage generator and controlling circuit. High voltage output is controlled by remote controller and a security door is adopted, so that operators do not need to touch the equipment at all to ensure absolutely safety.
This equipment is suitable high voltage tests for single phase and three phase meter.
III. Main Specification
1. Voltage output
Single phase: 4000V, 2000V
Three phase: 4000V, 2000V, 2000V (U/I), 600V
2. Leakage current: 5mA
3. Testing time: 1-99s (settable)
4. Tested meters: Single phase 6PCS
Three phase 6PCS.
5. Power supply: Single phase 220V 50Hz, ground connection must be required.
6. Environment: 20± 5 degree, humidity ≤ 80%
